Electric Bike Conversion Kit
Electric Bike Conversion Kit
Couldn't load pickup availability
SPECIFICATIONS
48V 500W Front or Rear Hub Motor Brushless Gear Bicycle
20-29 Inch 700C Wheel Drive Engine
Certification: CE
Design: Brushless
Hign-concerned Chemical: None
Motor: Brushless Gear Hub Motor
Voltage: 48V
Wattage: > 400w

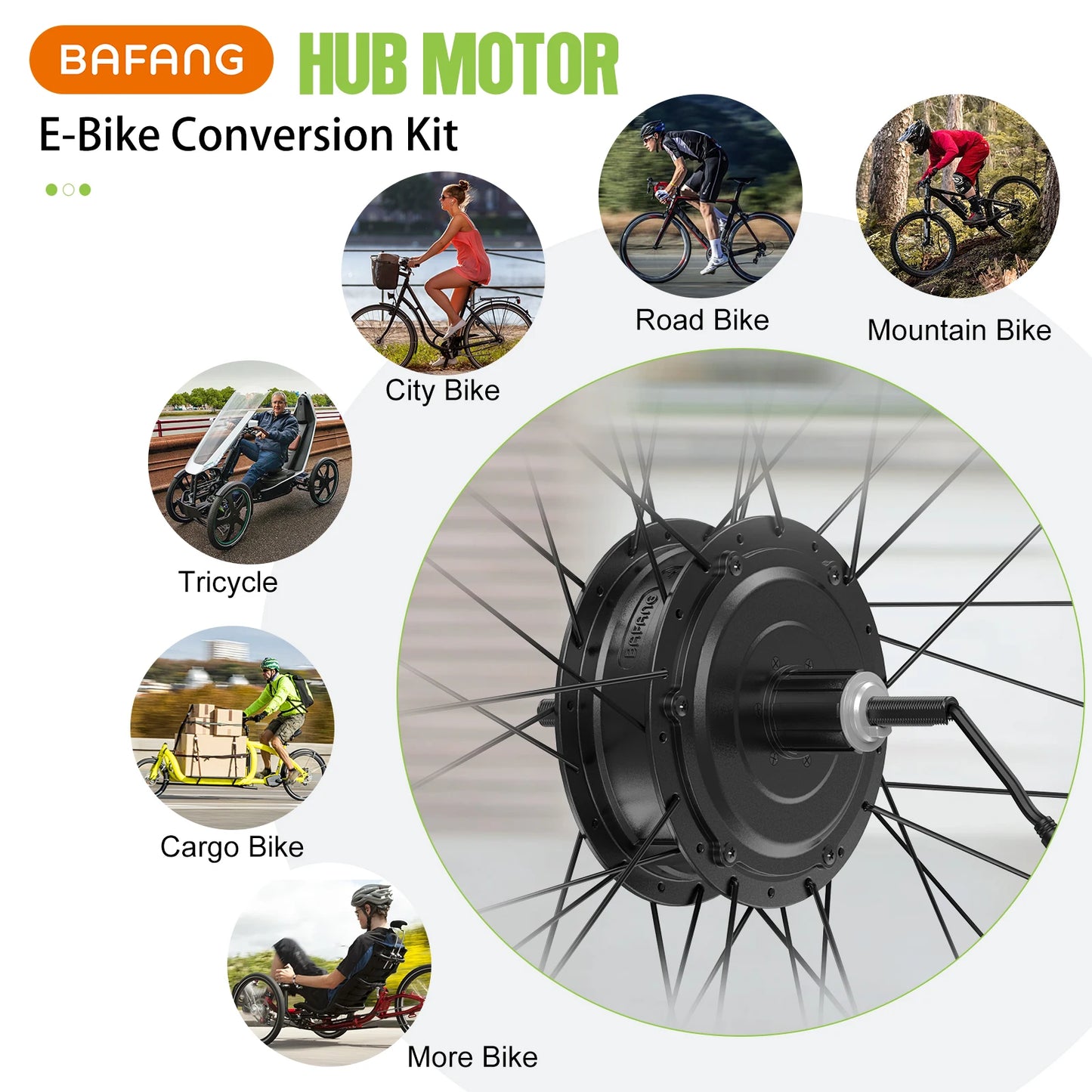

Many choices to fit your bike
BAFANG 48V 500W Front & Hub Motor : Electric Bike Conversion Kit for 20 26 27.5 700C Inch Front Wheel eBike Drive System with LCD Display & PAS Sensor
About this item
E-Bike Conversion Kit: Transform Your Bicycle with Ease
This versatile e-bike conversion kit offers cyclists a convenient and cost-effective way to electrify their existing bicycle. Designed for compatibility with various bicycle types, the kit provides two primary conversion options:

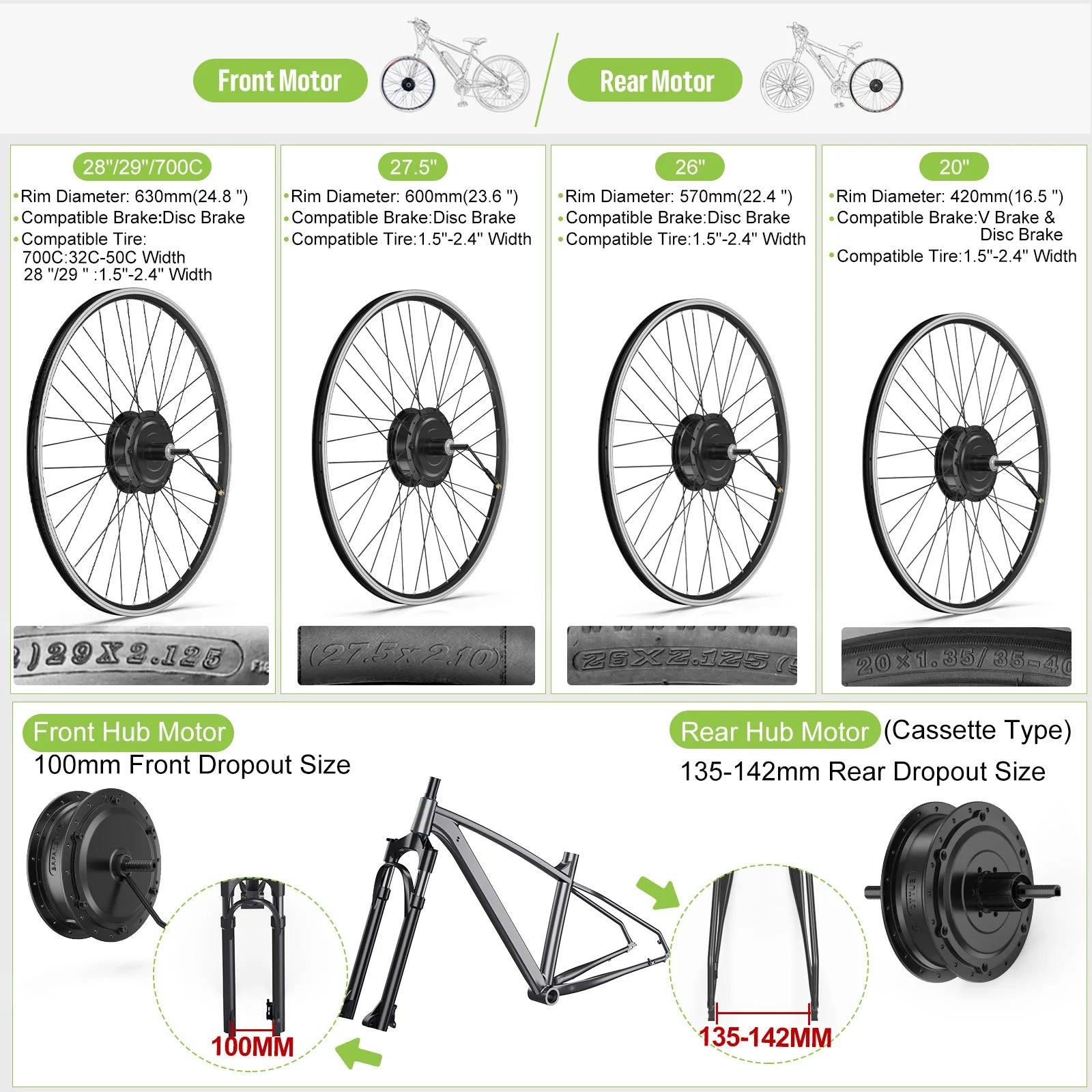

Rear Motor Configuration:
- Suitable for bicycles with rear dropout size 135-142mm
- Compatible with flywheel systems up to 9 speeds
- Simple DIY installation process
Front Motor Configuration:
- Designed for bicycles with 100mm dropout size
- Straightforward conversion methodology
Technical Specifications:
- Rated Power: 500W
- Disc brake compatibility
- Maximum Speed: 38-40 KMH
- Motor Efficiency: ≥ 80%
- Motor RPM: 470
Comprehensive Package Includes:
- Rear wheel and motor
- Controller
- Brake lever/sensor
- Thumb throttle
- Controller case

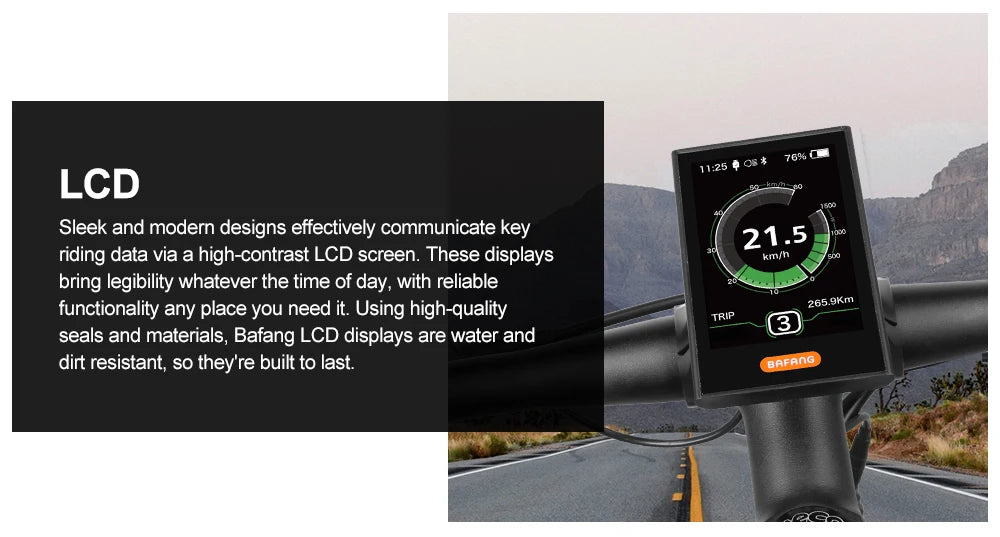

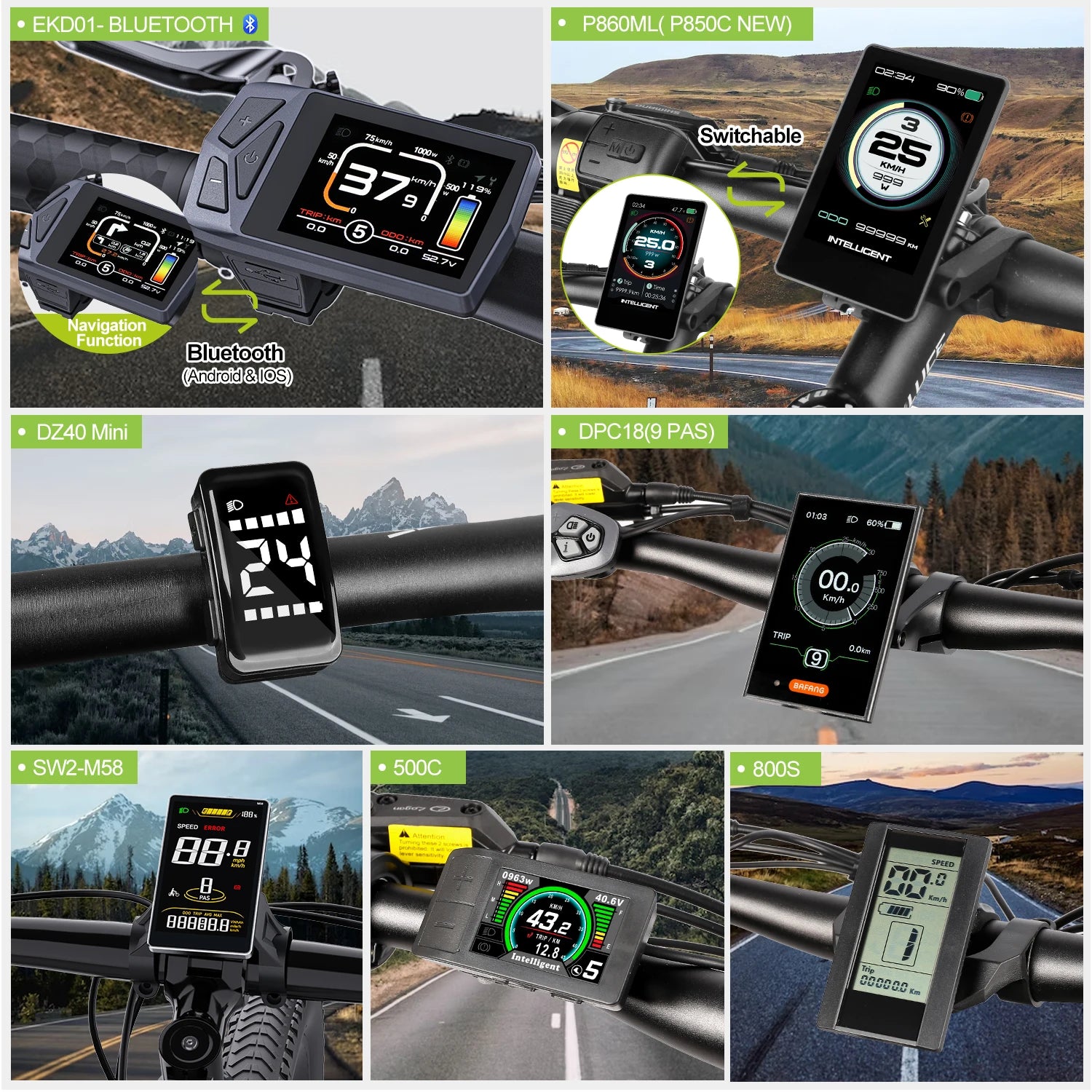

- LCD display (optional)
- Extension cable
- Pedal Assist System (PAS)
- 1T4 cable
- Complimentary LED light
Safety and Performance Features:
- Brake levers automatically cut motor power
- Ideal for touring, commuter, and mountain bikes
- Significantly enhances riding comfort
- Low-cost electrification solution
The conversion kit provides cyclists with an accessible method to upgrade their traditional bicycle into an electric-assisted vehicle, offering improved mobility and efficiency without requiring a complete bicycle replacement.

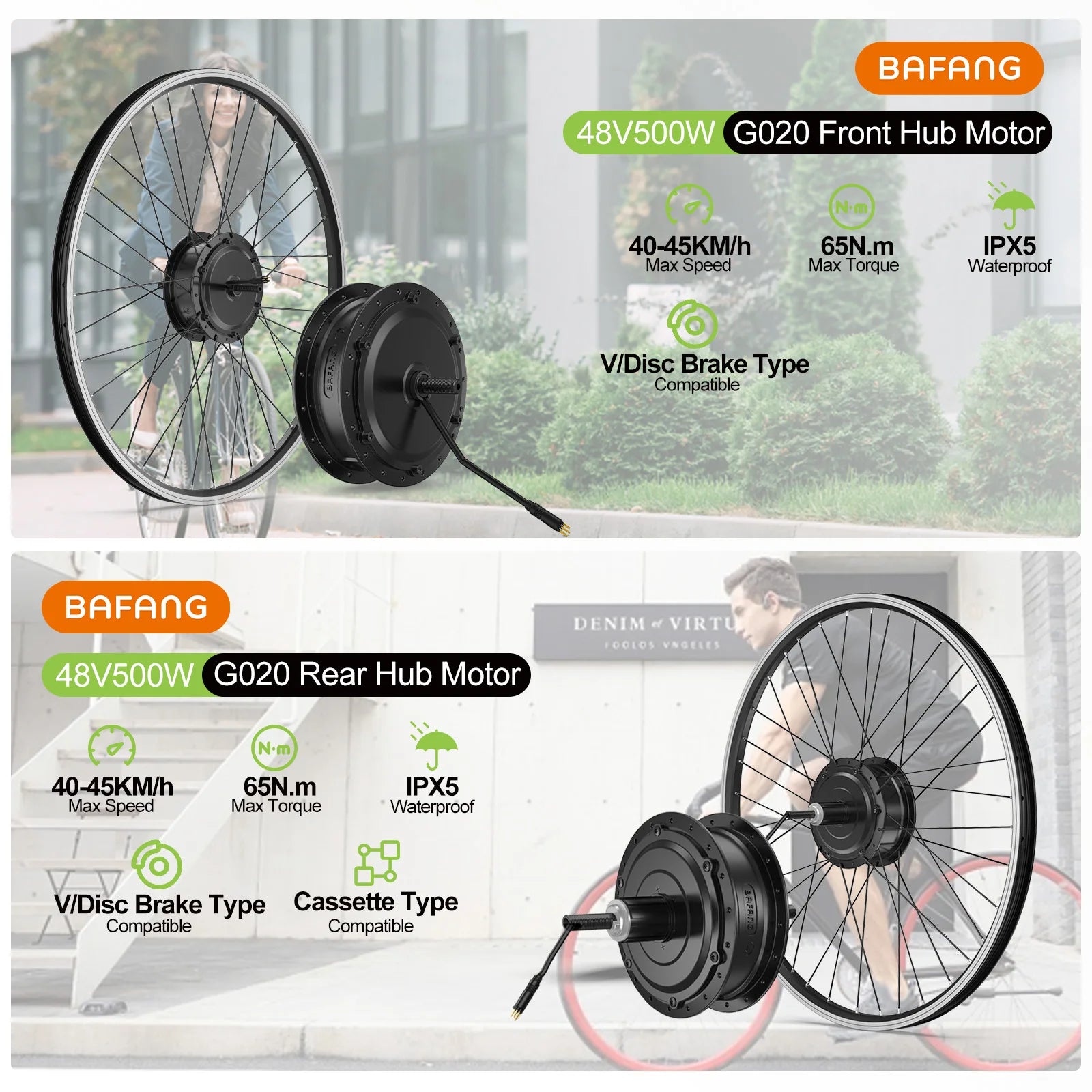

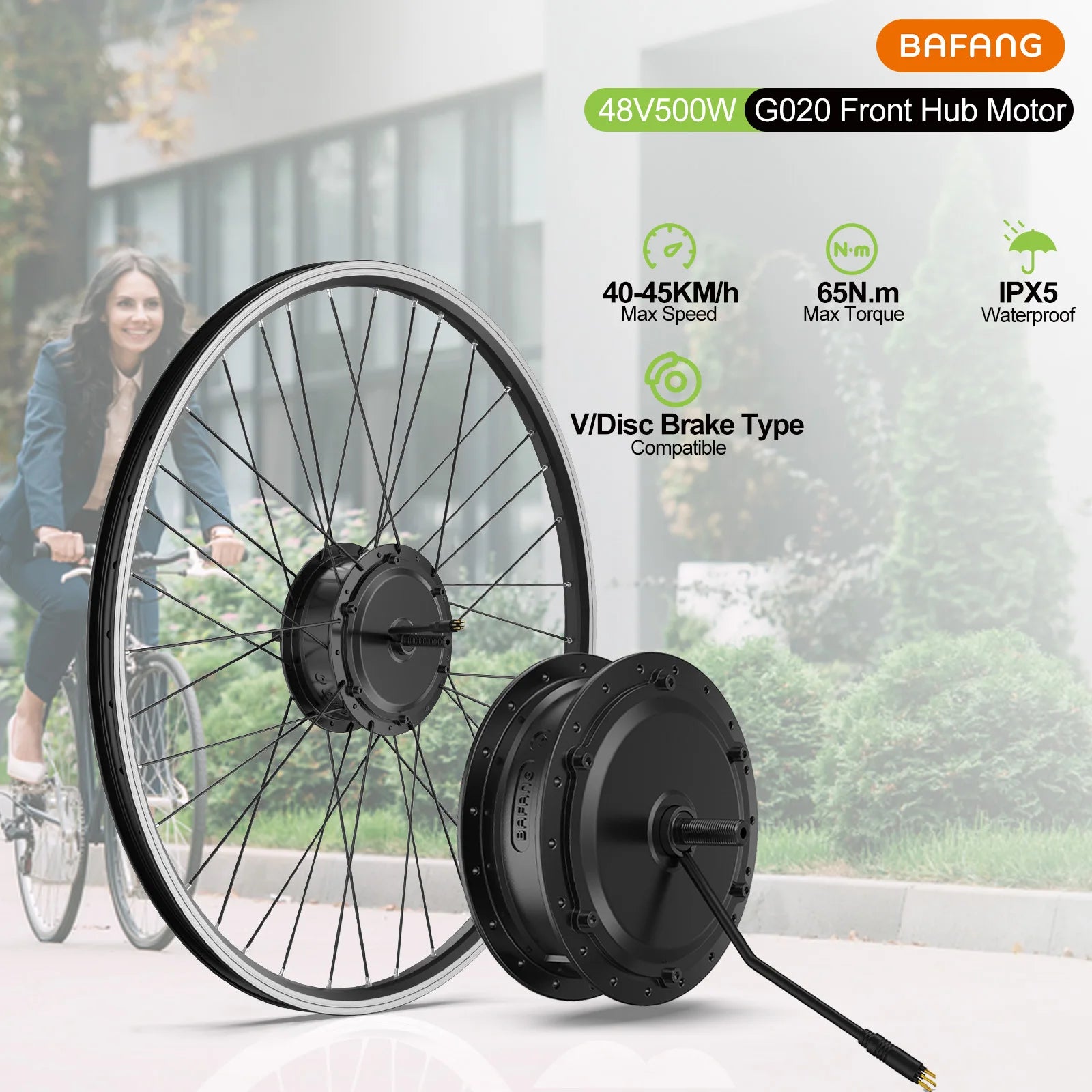

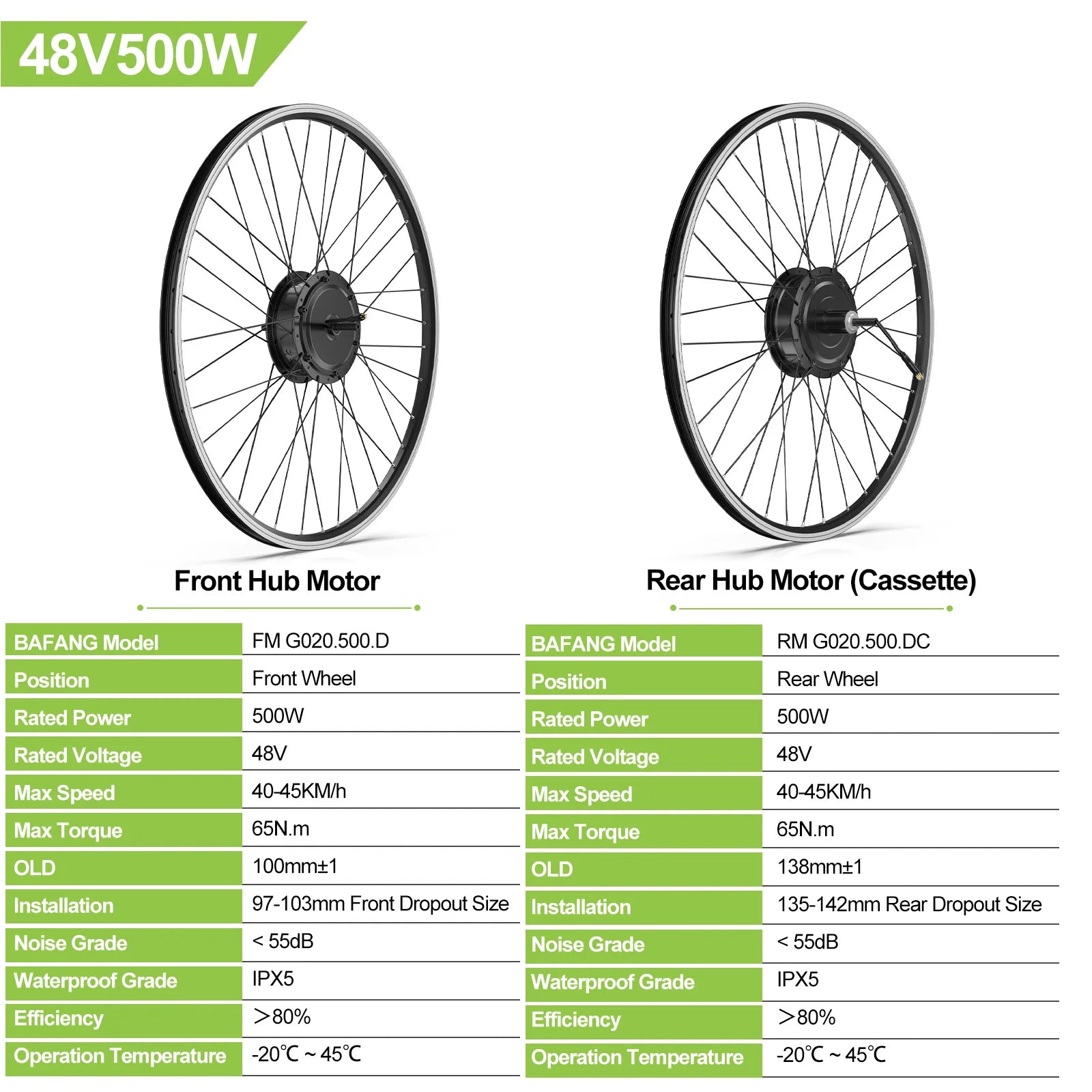

HF-SERIES (Front Wheel ):
The motors in the HF-Series are extremely light and fit perfectly in contemporary urban bikes. With their 500 W power they deliver harmonious assistance and support the rider perfectly for daily trips across the city.

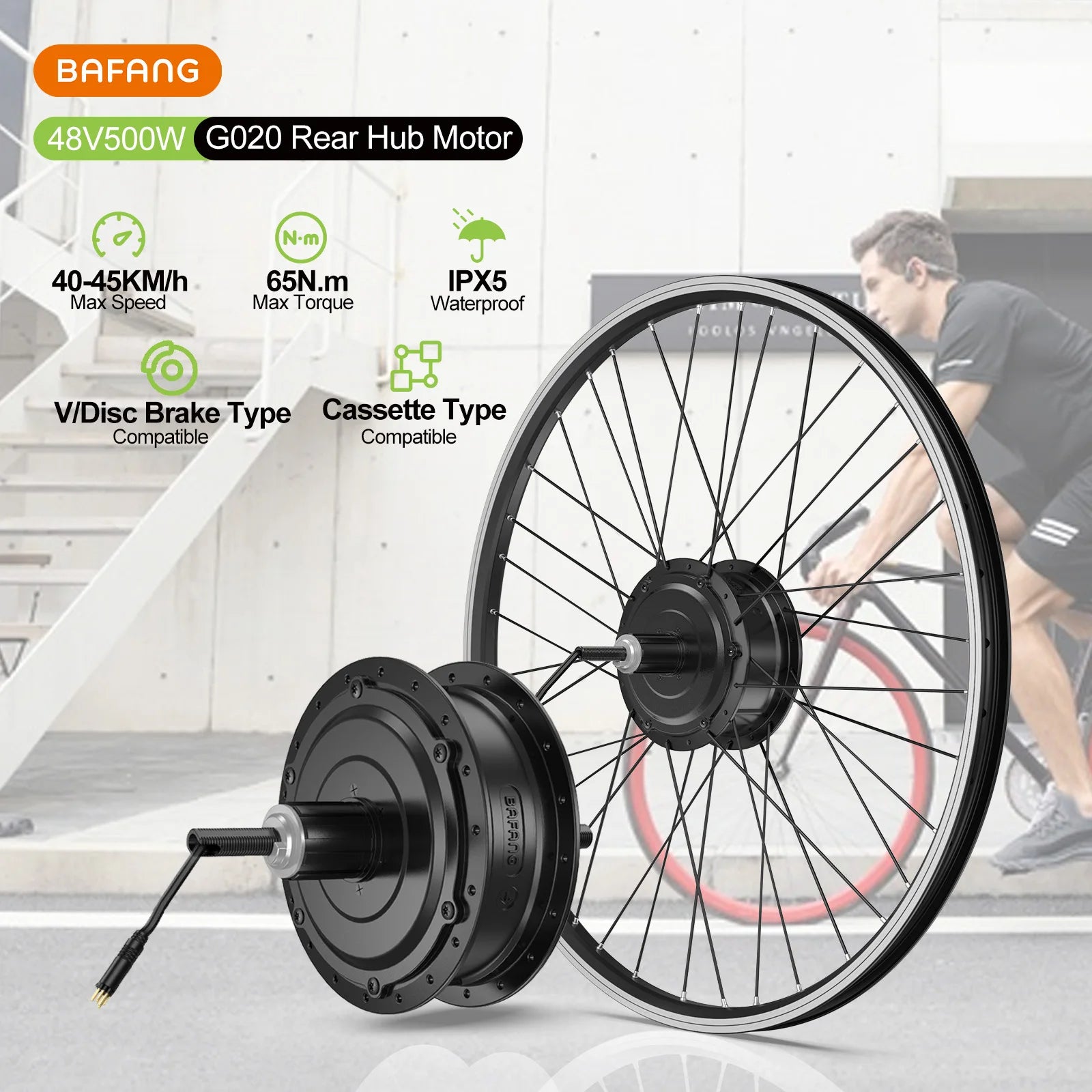

HR-Series:
Rear motor is integrated with the automatic dual speed system. The motor automatically adjusts the gearbox ratio by detecting the speed of the vehicle during cycling. While the 500W rated power that meets legal requirements, with 65Nm of torque, it can easily ensure a strong performance for riders in daily commuting and leisure use.
FAQ:
Q:How do I know if thishub drive motor fits for my bike?
A: This rear hub motor fits for the bike withrear drop out size "135-142mm" DC type fits for max 10 speeds cassette.
This front hub motor fits for the bike with front drop out size "100-110mm".

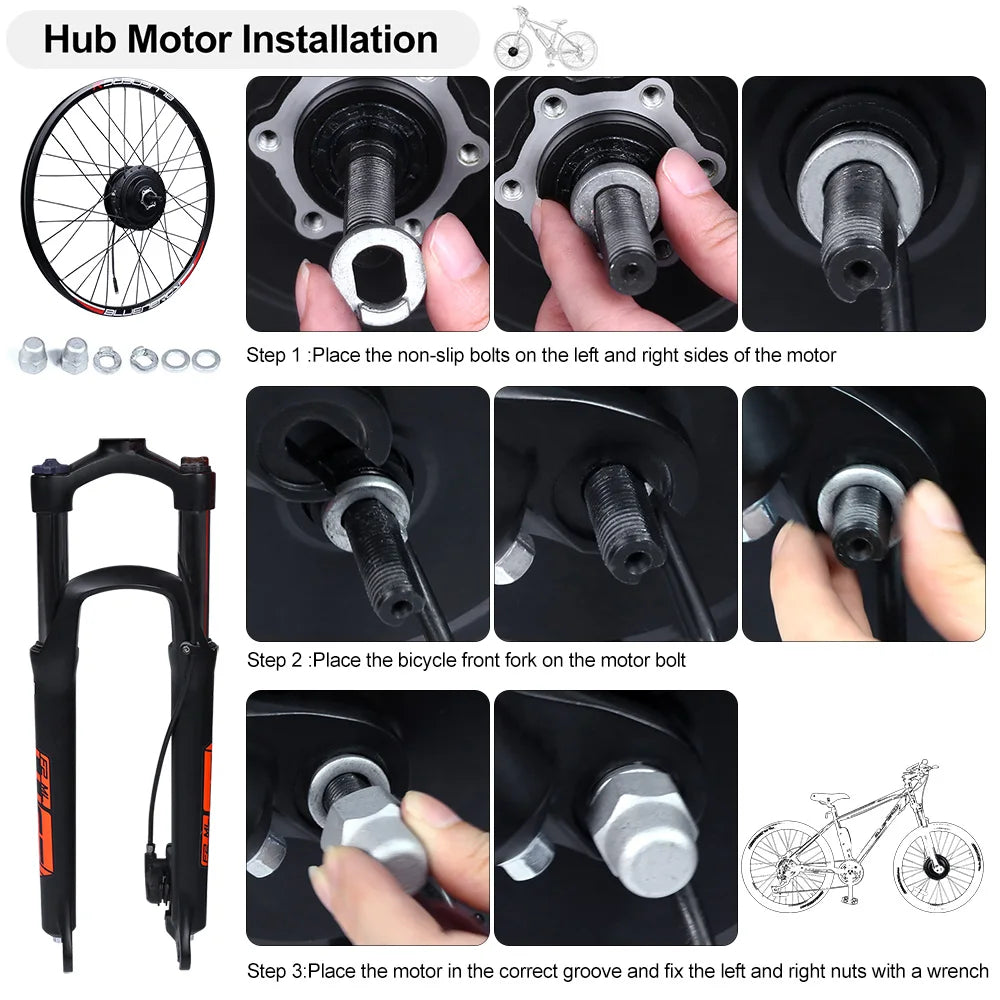

Q:Can I install the motor as soon as I receive it?
A: Before installing the motor, please follow the steps in the manual to connect the motor to see if the motor can work normally. If there is a problem, please contact us first, we will provide technical support, don't worry.

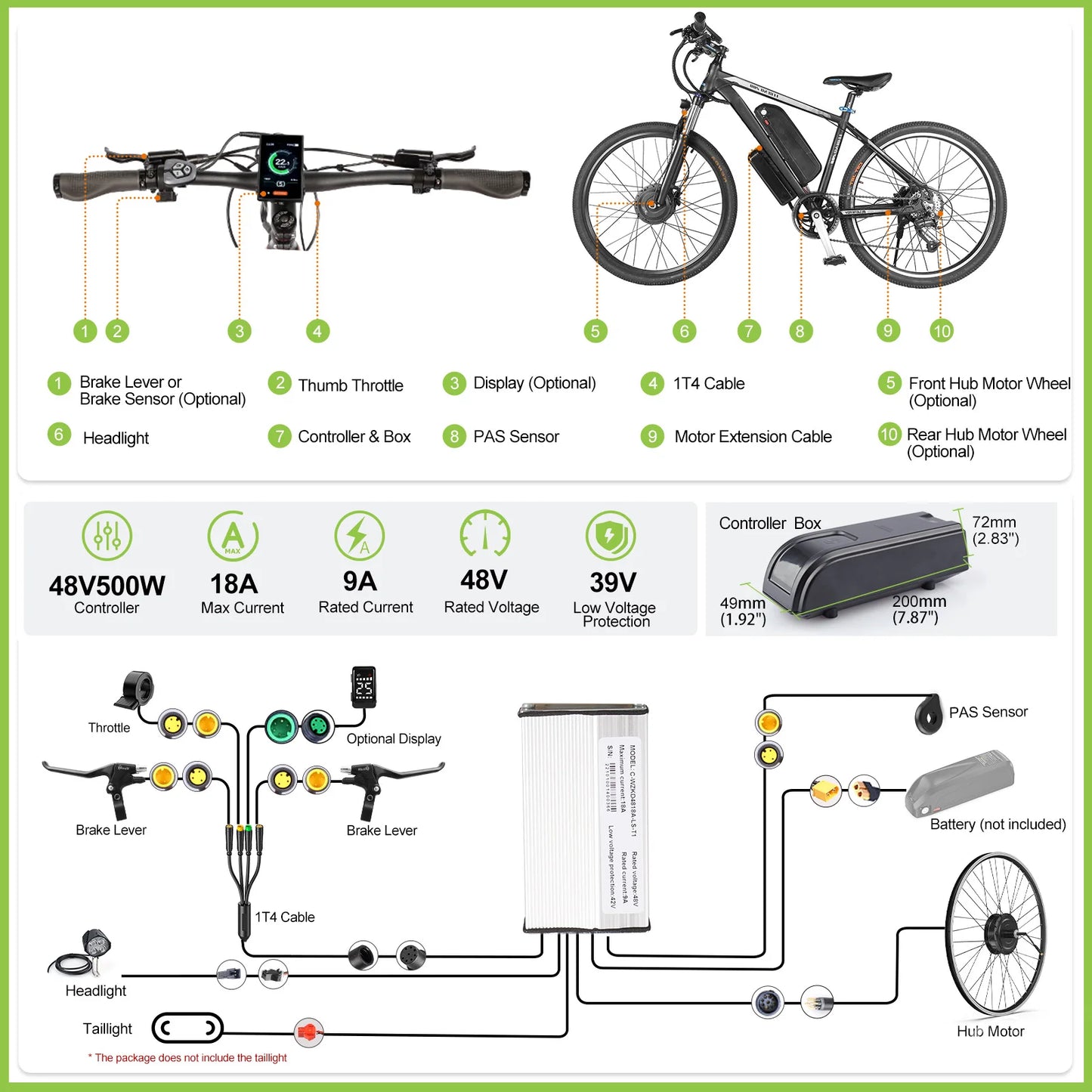

Packing List:
1 PC * Hub Motor Wheel
1 PC * 48V 500W Motor Controller
1 PC * Controller Box (not battery)

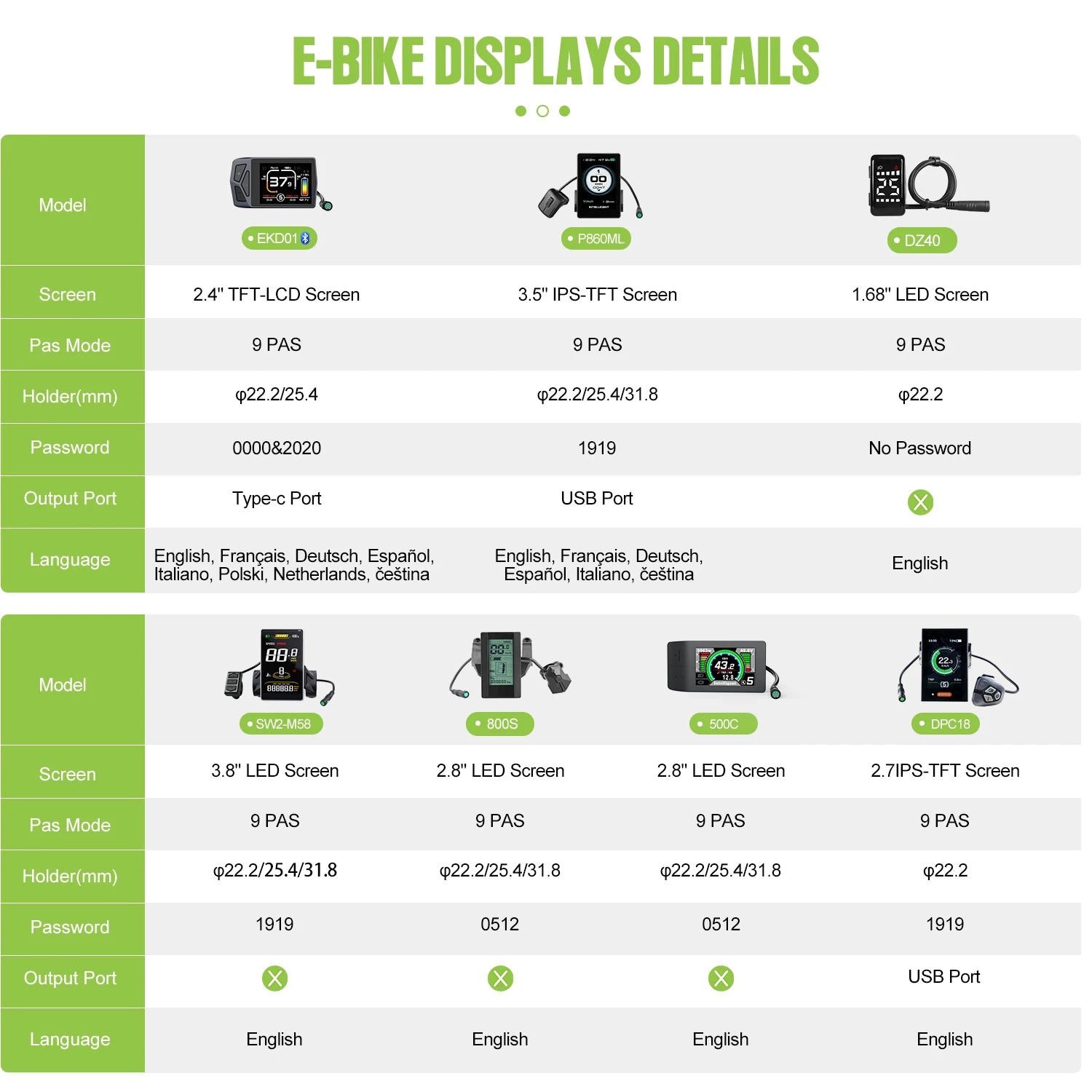

1 PC * Display (Optional)
1 PC * 1T4 Cable
1 PC * Thumb Throttle
1 PC * PAS Sensor
1 Pair * Brake Levers or Brake Sensors (Optional)
Gifts: 1 PC * Headlight + 1 Set * Cable Ties + 1 Set * 36V250W Stickers
